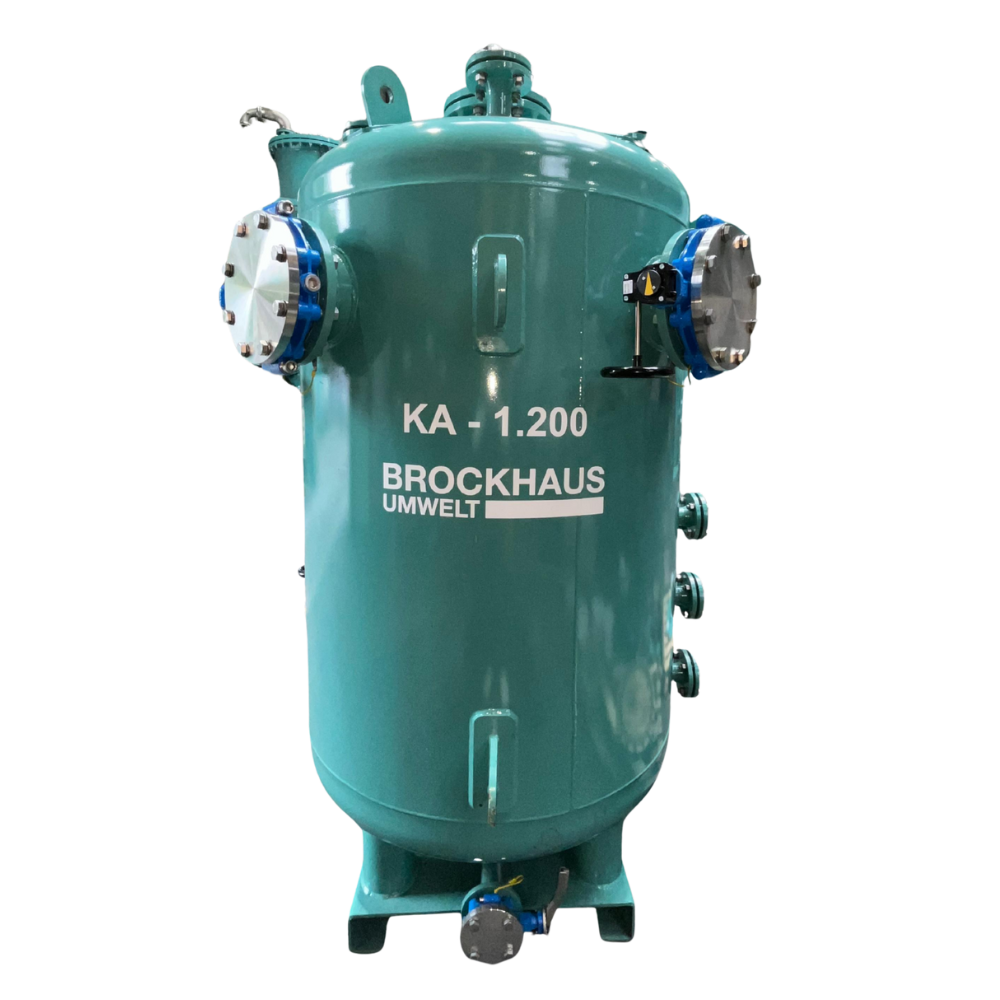

BROCKHAUS condensate separator KA-1.200
The KA-1.200 is a condensate separator specifically designed for gas applications.

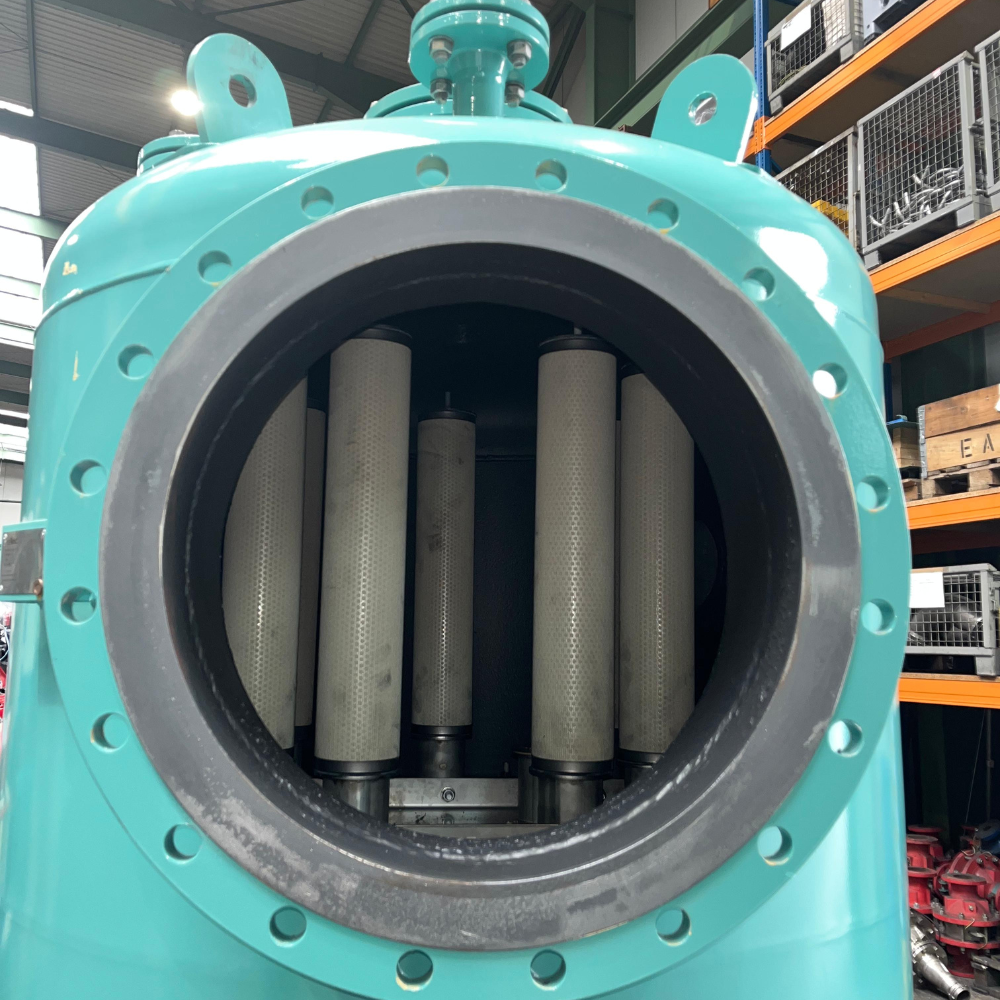

By using filter cartridges, liquid droplets are effectively separated from the gas stream.
The system achieves a separation efficiency of 99.5% for droplets larger than 10 µm.
The internal, electrically conductive 2K coating provides additional corrosion protection and prevents electrostatic charging, thereby increasing operational safety.
The condensate separator is designed for operating pressures up to 6 bar, covering a wide range of applications.
Specification
|
Type: |
KA-1,200 |
|
Operating pressure: |
min. -1 bar / max. 6 bar |
|
Operating temperature: |
min. -10 °C / max. 80°C |
|
Fluid group: |
1 |
|
Differential pressure: |
approx. 20 mbar* |
|
Volume: |
approx. 1.93 m³ |
|
Cylindrical height: |
1,500 mm |
|
Total height: |
2,380 mm |
|
Diameter: |
1.2 m |
|

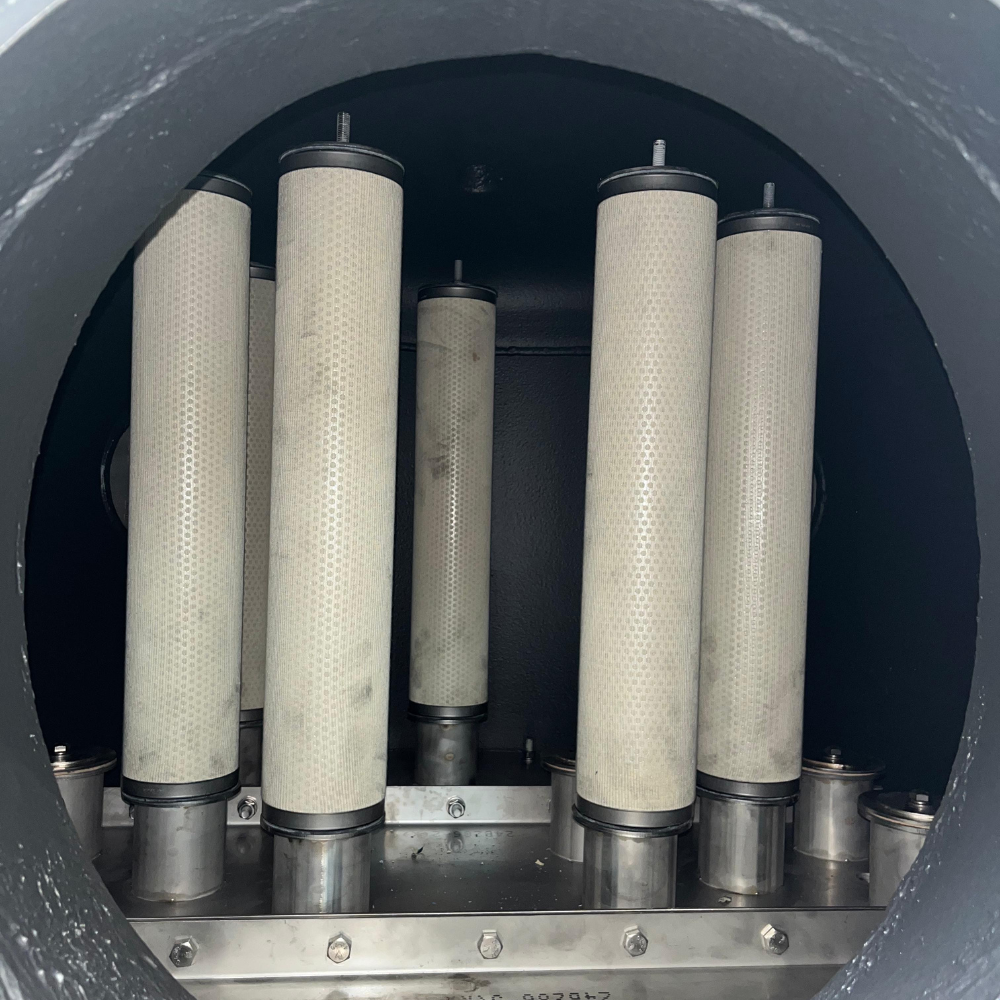

Number of filter cartridges: |
13 |
|
Filter cartridge material: |
Impregnated glass-fiber filter |
|
Separation efficiency: |
99.5% for droplets > 10 µm |
|
Housing material: |
S235 with electrically |
|
Valves: |
TA-Air compliant |
|
Connections: |
Flange connections (DIN EN 1092-1) |
* depending on process parameters and activated carbon selection
Optional extension
As a full-service provider, we can design and configure the KA-1.200 individually for your specific application and equip it with additional components.

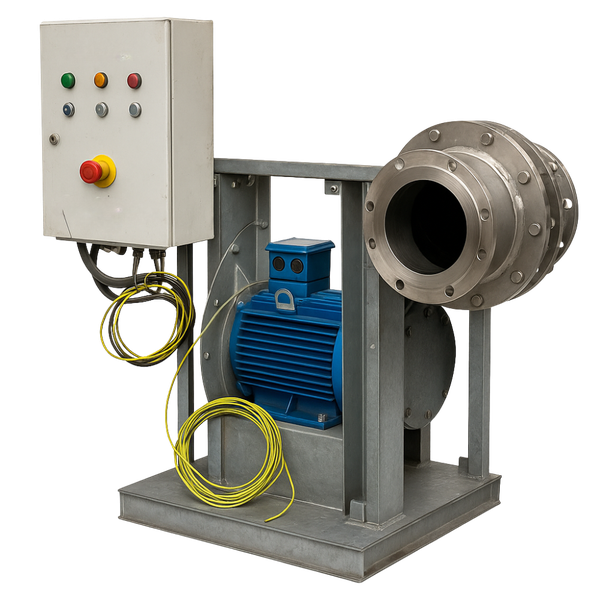

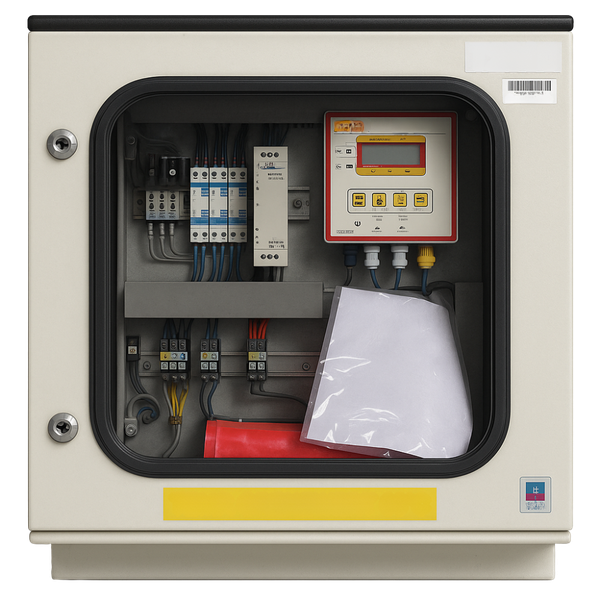

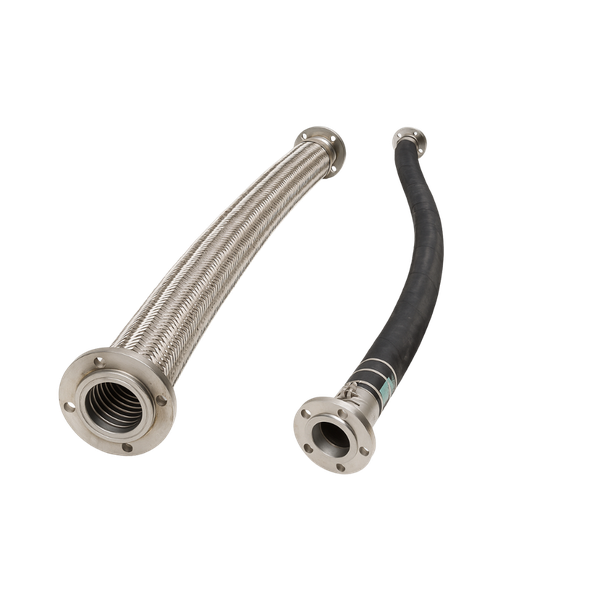

Optionally, the condensate separator can be fitted with extra components such as activated carbon filter units, hoses, explosion-proof blowers, safety equipment, measuring instruments, and control systems — providing a complete, safe, and autonomous solution.
