BROCKHAUS LAF-1.200

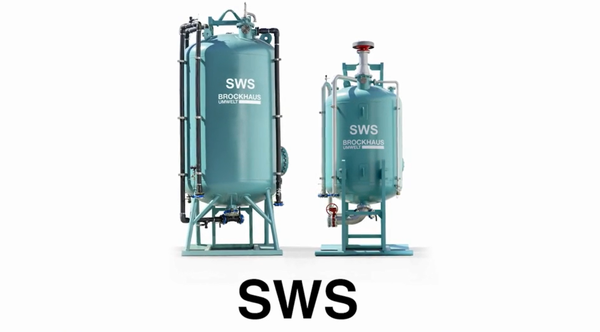

The LAF-1.200 is an activated carbon filter with a quick-change system (SWS) designed for gas applications.
By using different types of activated carbon, VOCs, H₂S, NH₃, and Hg can be reliably adsorbed.
The internal, electrically conductive two-component coating provides additional protection against corrosion and prevents electrostatic charging, thereby increasing operational safety.
Integrated sampling points allow for easy monitoring of filter performance.
The filter is designed for operating pressures up to 6 bar, covering a wide range of applications.
Specification
|
Type: |
SWS-Air Activated Carbon Filter 1,200 |
|
Operating pressure: |
min. -1 bar / max. 6 bar |
|
Operating temperature: |
min. -10 °C / max. 130 °C |
|
Gas flow rate: |
500 -1,500 m³/h |
|
Fluid group: |
1 |
|
Differential pressure: |
approx. 21 mbar* |
|
Filter volume: |
approx. 1.2 m³ |
|
Empty weight: |
approx. 1.200 kg |
|
Operating weight: |
approx. 2,000 kg |
|
Dimensions (LxWxH): |
1.5 m x 1.5 m x 2.4 m |
|
Diameter: |
1.2 m |
|
Filter material: |
S235 with electrically |
|
Piping: |
1.4571 or HDPE |
|
Valves: |
TA-Air compliant |
|
Connections: |
Flange connections (DIN EN 1092-1) |
Optional Extension
As a full-service provider, we can tailor the LAF-1.200 to your specific application and equip it with additional components.
Optionally, the filter can be fitted with extra components such as additional filter units, hoses, explosion-proof blowers, condensate separators, safety equipment, measuring instruments, and control systems — providing a complete, safe, and autonomous solution.
