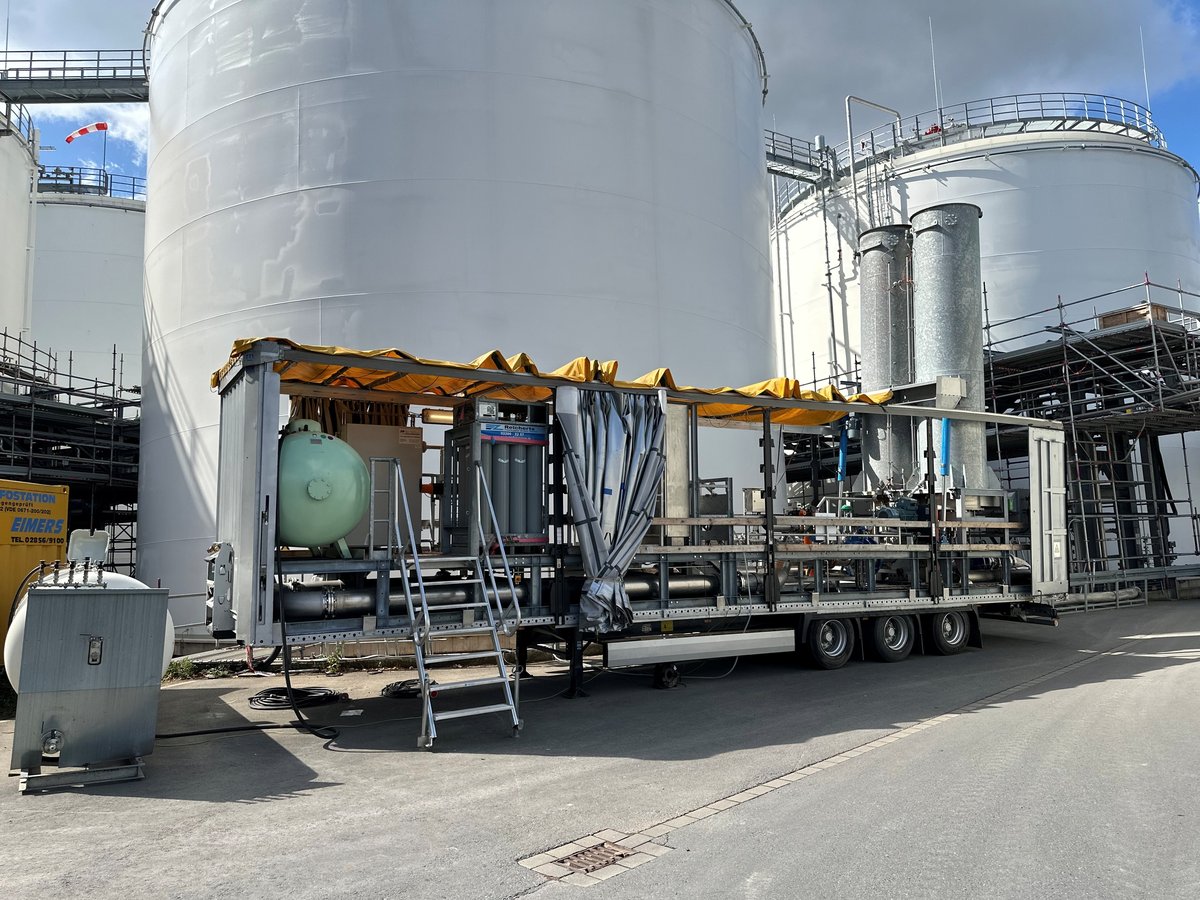

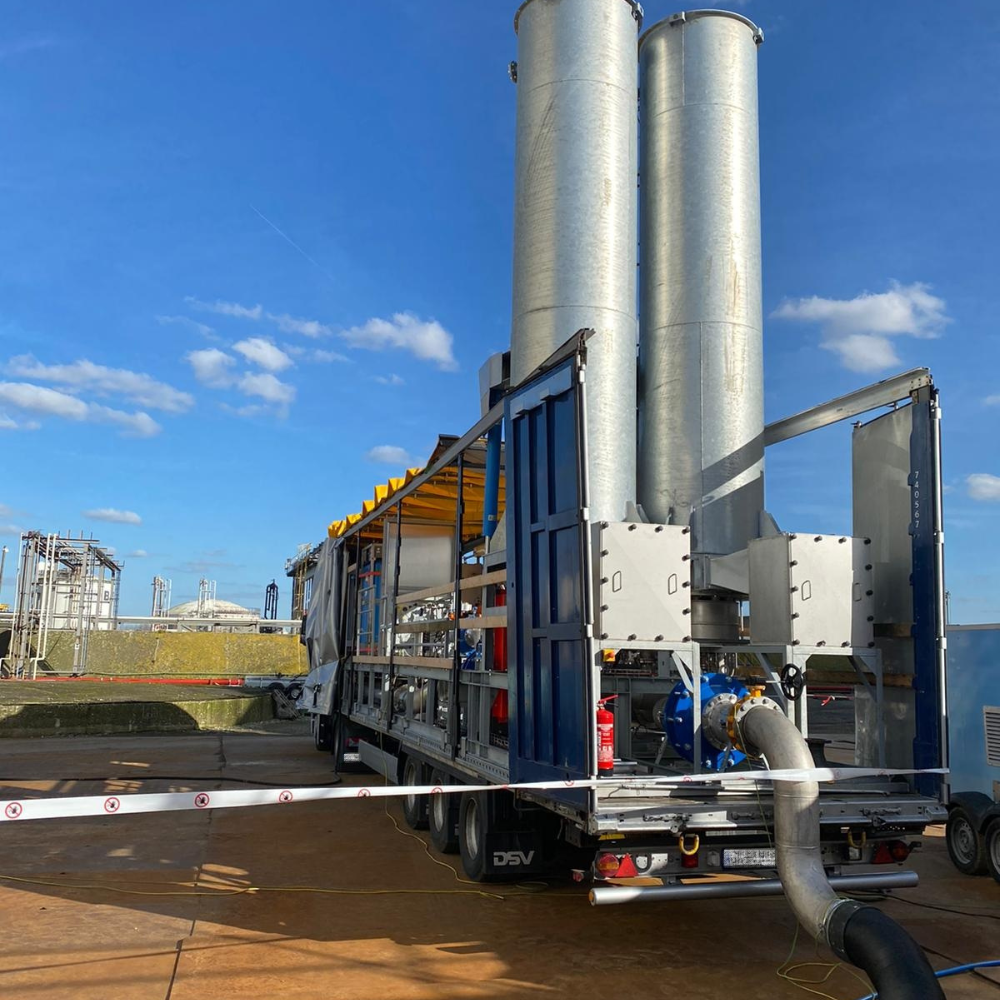

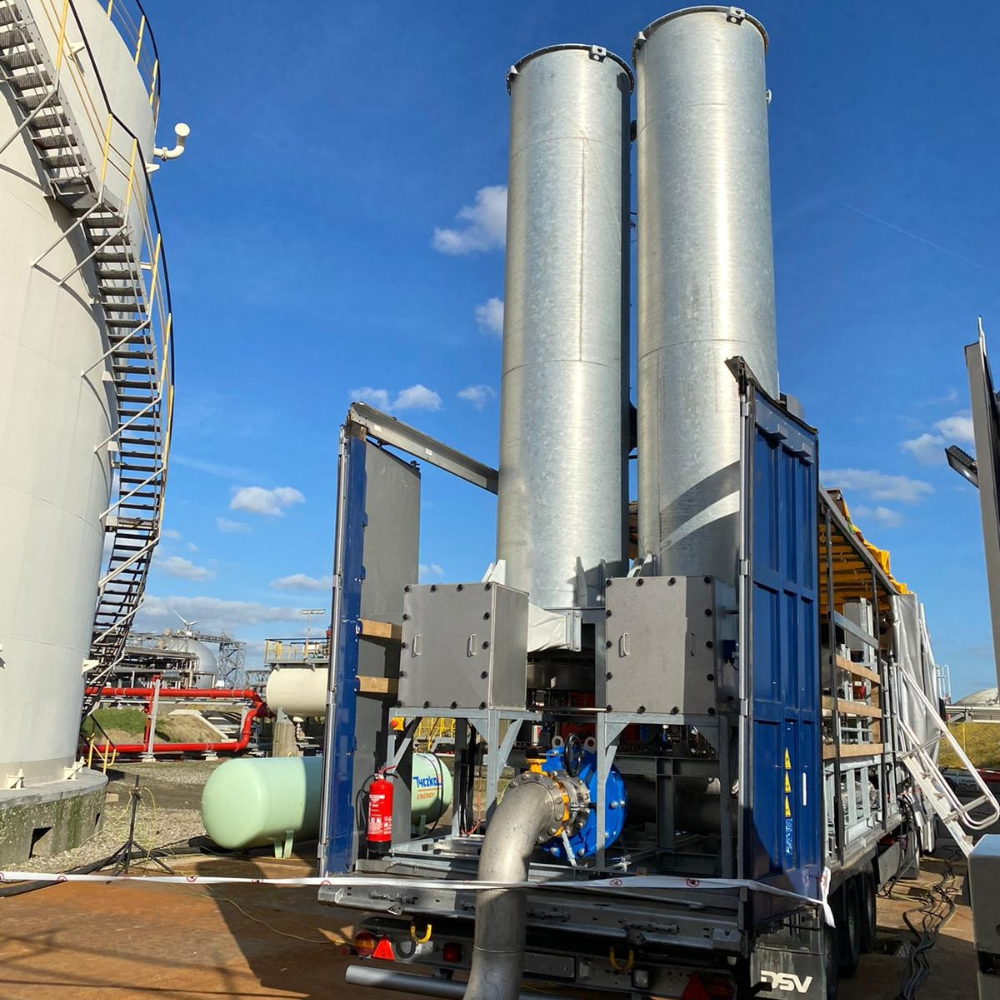

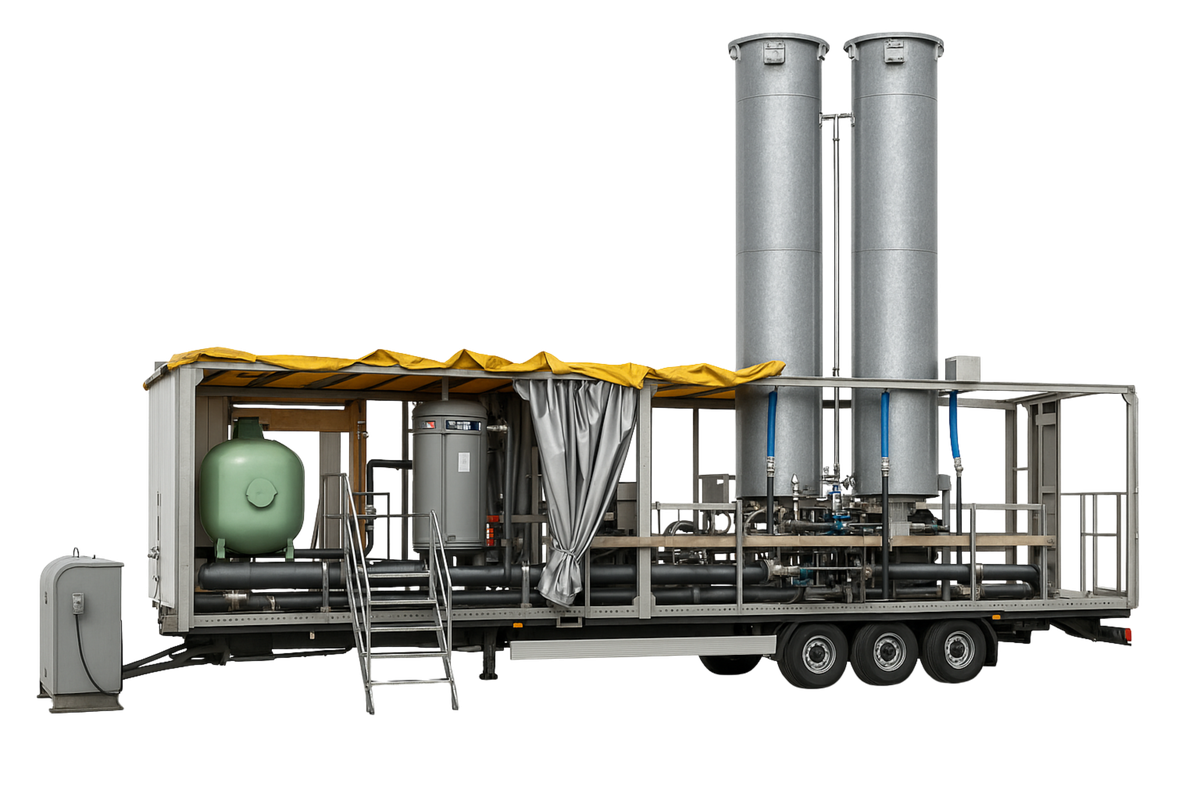

BROCKHAUS VCU – Mobile combustion chamber
The BROCKHAUS VCU is a mobile combustion chamber for the low-emission combustion of hydrocarbons and other combustible components in flue gases.
It is designed for flexible and safe use and enables efficient on-site thermal treatment of exhaust gases.
Technical Highlights
|
Exhaust gas capacity: |
up to 3,000 Nm³/h |
|
Equipment: |
2 × 2.5 MW adjustable |
|
Destruction efficiency: |
> 99.9% at exhaust gas temperature of 1.050 °C |
|
Processed gas concentrations: |
from 0-1.000 g/m³ |
|
Energy consumption: |
< 20 kW (without support gas operation) |
What makes the unit unique
- First system of its kind with ATEX system approval
- Fully mobile (hydraulically deployable)
- Triple flame arrestor protection
- Remote operation via vehicle or cellular router
- Large nominal diameters (DN250) to minimize pressure losses
Services & Combinations
- Planning, engineering & documentation
- Exhaust air & wastewater management
- Filtration & tank provision
- Modular combination via Plug & Safe
