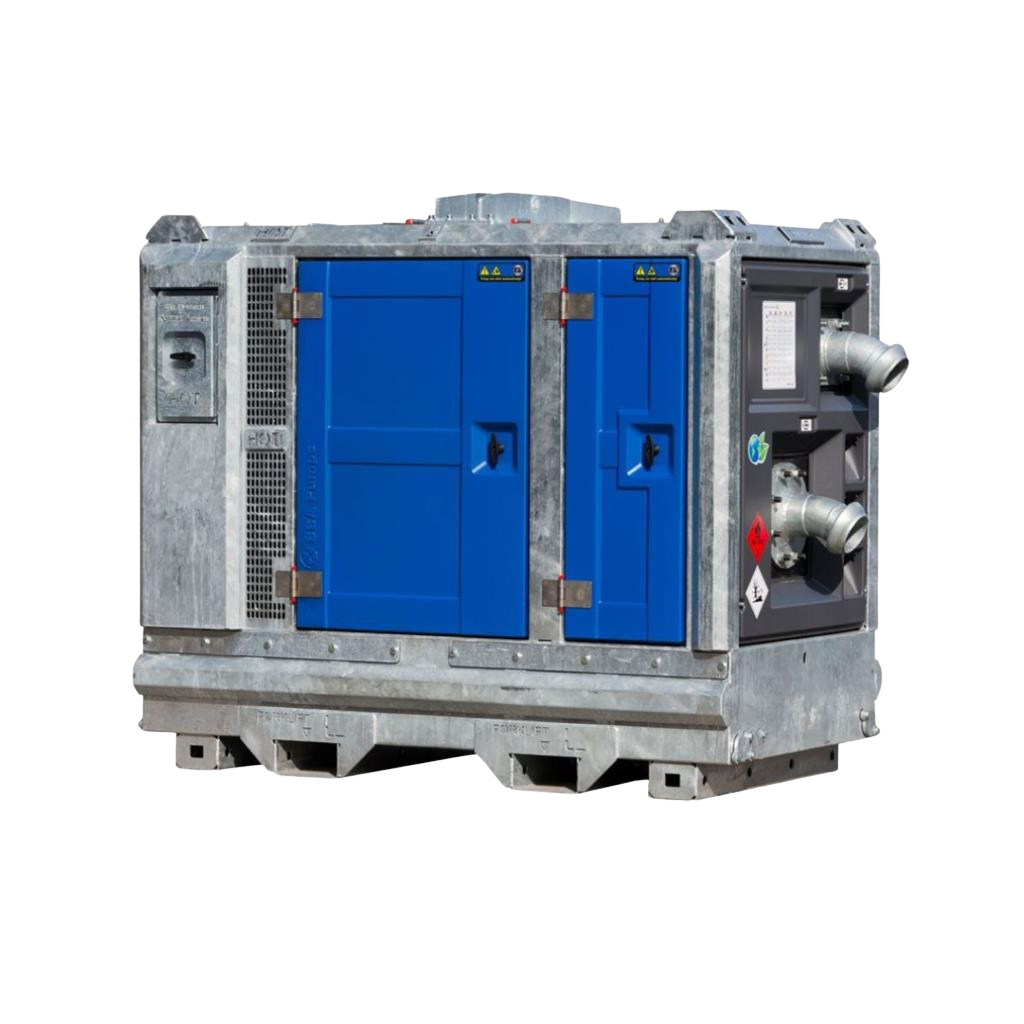

Centrifugal pump type BA 100K
The ATEX BA series pumps are suitable for pumping both clean and partially contaminated liquids due to their large free passage and wear resistance. The pumps are equipped with semi-open or closed impellers and quick-change wear plates or wear rings. Since only a few rotating parts come into contact with the liquid, wear on the pump is low.
|
Type |
BA100K D193 G EX II 2G IIB T4 |
|
Max. Flow rate |
130 m³/h |
|
Max. Head |
15 mWS |
|
Connections |
DN 100 (4ʺ) |
|
Pump material |
Cast iron |
|
Vacuum System |
BBA MP50 |
|
Motor |
7.5 kW - Ex II 2G Ex de IIC T4 |
|
Spanning |
400V / 50 Hz |
|
Weight |
1,400 kg |
|
ATEX Classification |
EX II 2G IIB T4 Gb |
