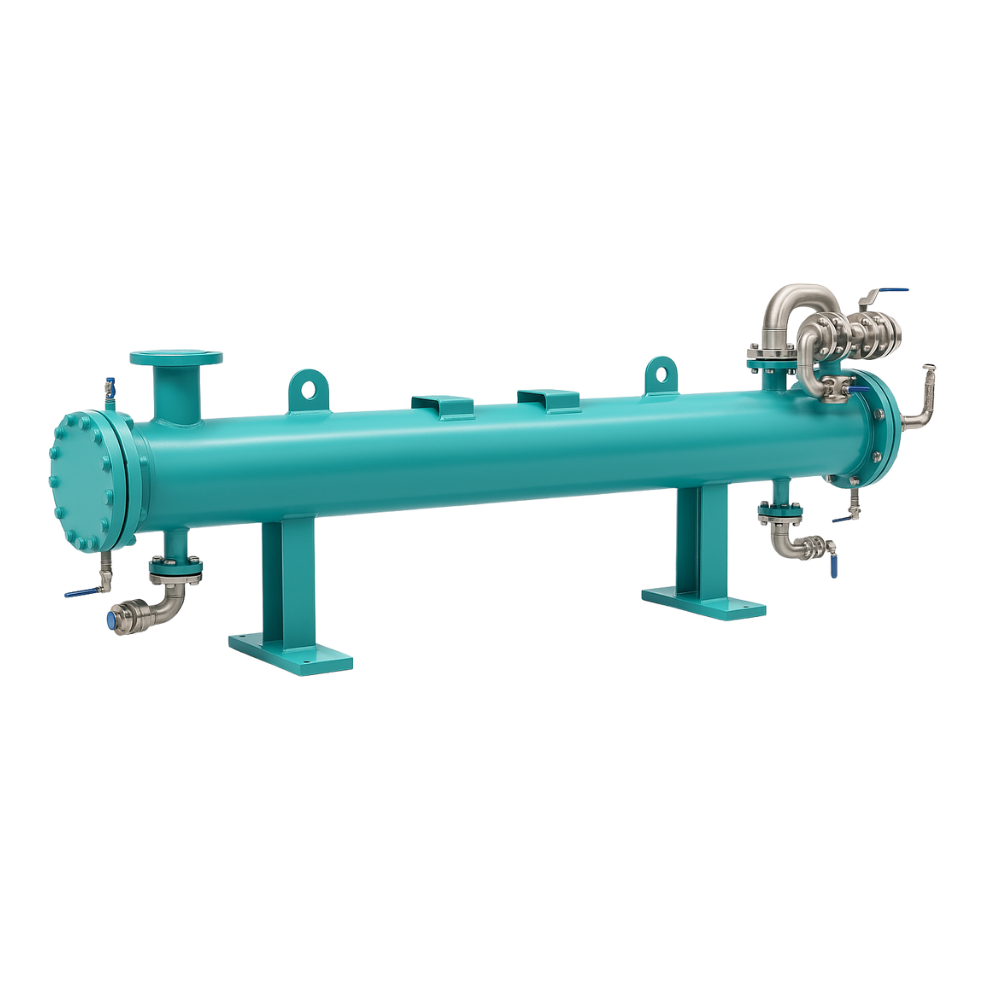

Heat exchanger
Table 1: Heat exchangers – General data
|
Property |
Value |
|
Connection |
DN100 PN16 |
|
Material |
Stainless steel 1.4404 / 1.4571 |
|
Heat transfer surface |
21 m² |
|
Tare |
approx. 720 kg |
|
Overall length |
3,800 mm |
|
Overall depth |
1,275 mm |
|
Fluid Group |
1 |
|
Admission |
PED |
Table 2: Operating data – Media in the heat exchanger
|
Parameter |
Medium through the pipes |
Medium around the pipes |
|
Fluid Group |
1 |
2 |
|
Max. volume flow |
20 m³/h |
50 m³/h |
|
Max. temperature |
100 °C |
90 °C |
|
Max. pressure |
6 bar |
6 bar |
|
Content |
approx. 190 L |
approx. 140 L |
