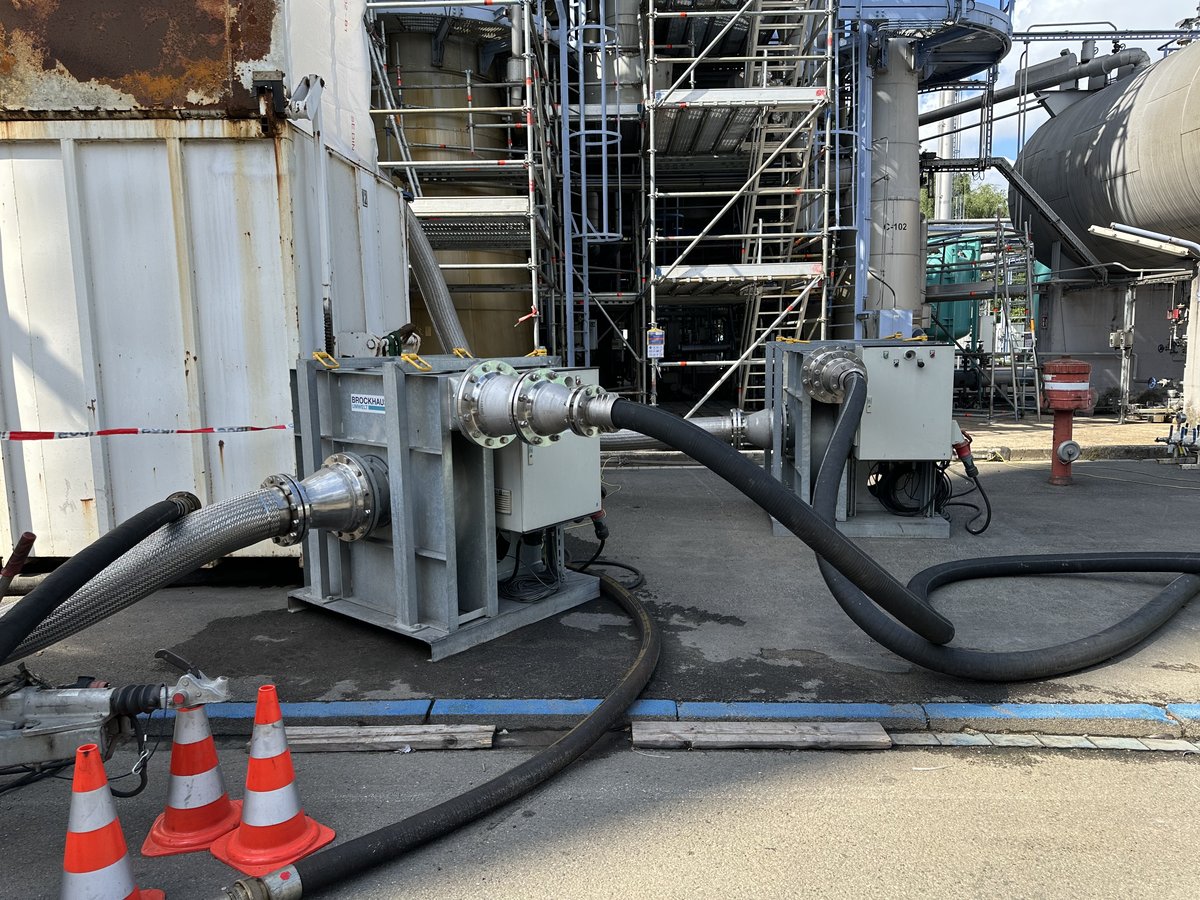

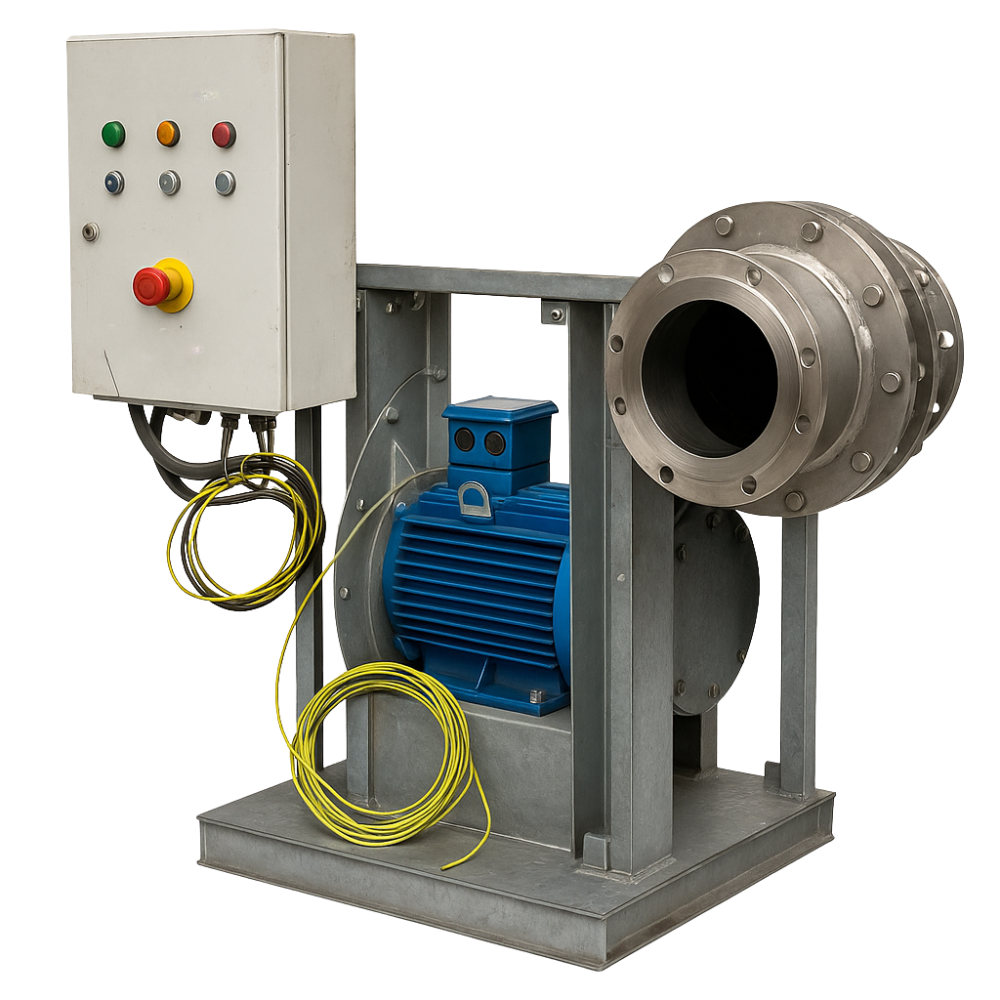

High-pressure centrifugal blower

One-sided suction centrifugal fan in sturdy welded industrial design, electrodynamically balanced impellers with up to 16 backward curved blades mounted on the motor shaft of the attached three-phase motor, which is not in the air flow.
Air volumes up to approx. 10,000 m³/h, max. Pressure increase 14,000 Pa.

Features:

• Various designs available on request (direct drive, belt drive, coupling).
• wheels in diameters 250-800 mm and different widths according to customer specifications.
• Efficiencies up to 85%.
• Application: extraction, exhaust air, supply air, filtration systems
• Possible materials: sheet steel, according to DIN EN ISO 1461; stainless steel (W1.4301, W1.4571, ...).
• All sizes according to ErP Directive 2015, motors according to IE2 / IE3 / IE4.
• ATEX fans or explosion-proof version according to:
• Gas, II 2 G Ex de IIC T4 Gb, Zone 1.
• Staub, II 2 D Ex tb IIIC T135° Db, Zone 22, 21.
• Intake and exhaust cross-section customizable.
• Extraction temperatures up to 300 °C are available on request.
