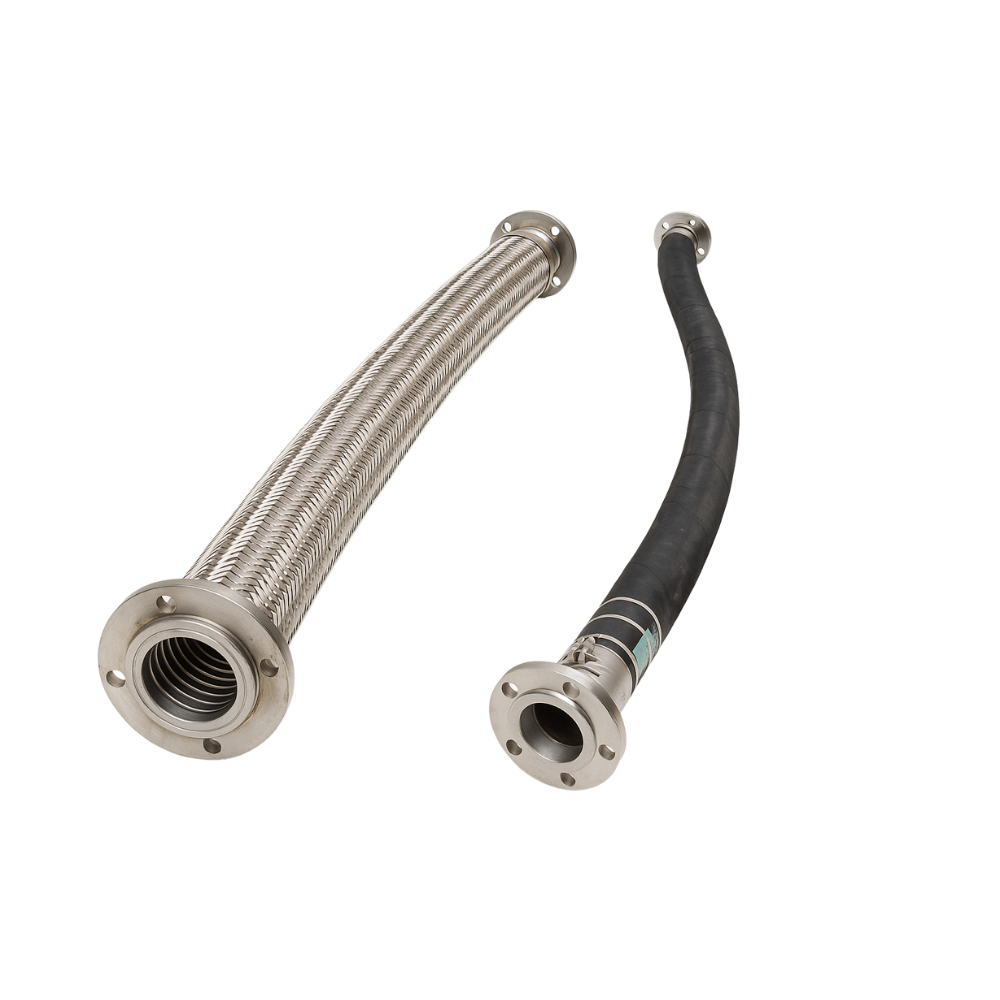

Hose assembly (UPE/stainless steel)
The UPE chemical protection hoses are flexible hoses lined with an inner layer of ultra-high molecular weight polyethylene (UPE). They are used for the safe transport of aggressive chemicals, acids, alkalis and alkalis. The UPE lining offers high chemical resistance, abrasion resistance and durability.
|
Connection size: |
DN50 |
|
Wall: |
8.0 mm |
|
Ø Inside: |
50.0 mm |
|
Ø Outside: |
66.0 mm |
|
Weight: |
2.1 kg/m |
|
Lengths: |
5/10/20 m |
|
Connection size: |
DN100 |
|
Wall: |
8.0 mm |
|
Ø Inside: |
100.0 mm |
|
Ø Outside: |
116.0 mm |
|
Weight: |
4.15 kg/m |
|
Lengths: |
5/10/20 m |
Wide nominal sizes possible...
|
Standard |
EN 12115:2011, TRbF 131, Part 2, § 5.5 |
|
Working pressure |
16 bar |
|
Pressure |
64 bar |
|
Vacuum |
0.90 bar |
|
Min. temperature |
-30 °C |
|
Max. temperature |
+100 °C |
