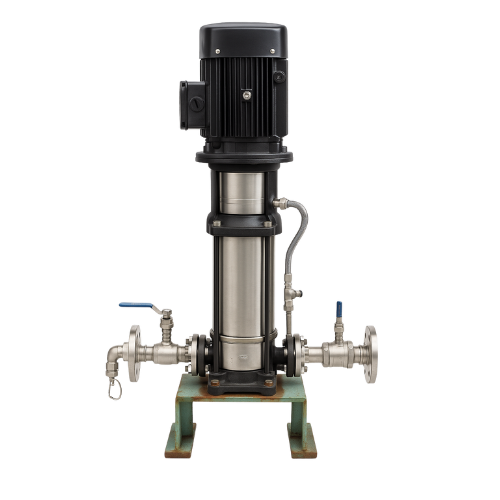

Vertical multistage centrifugal pump
Vertical, multistage centrifugal pump with opposing suction and discharge ports (inline design). The wetted parts of the pump are made of high quality stainless steel. The cartridge seal promises high reliability and serviceability. Power is transmitted via a rigid, split coupling. The piping connection is made via combined DIN-ANSI-JIS flanges.
|
Engine power: |
7.5 kW |
|
Nominal voltage: |
400 V / 50 Hz |
|
Nominal Current: |
14.2 A |
|
IE efficiency class: |
IE3 |
|
Suction nozzle: |
Flange DN50/PN25 |
|
Printing spout: |
Flange DN50/PN25 |
