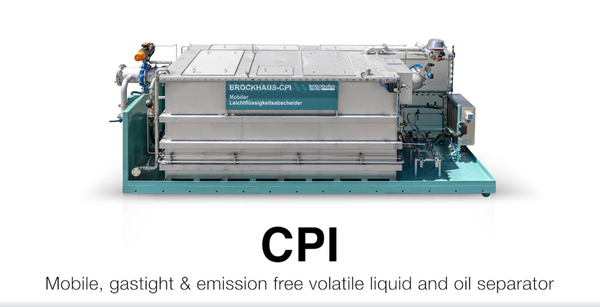

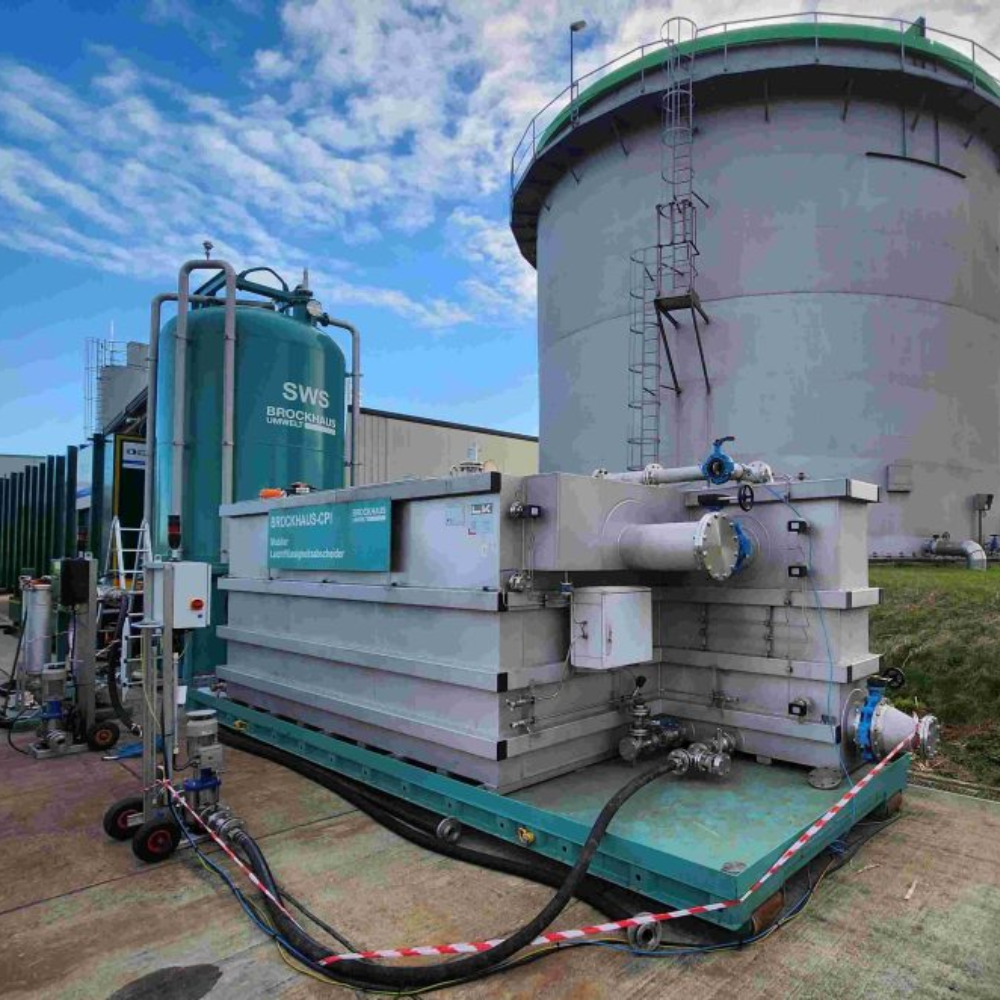

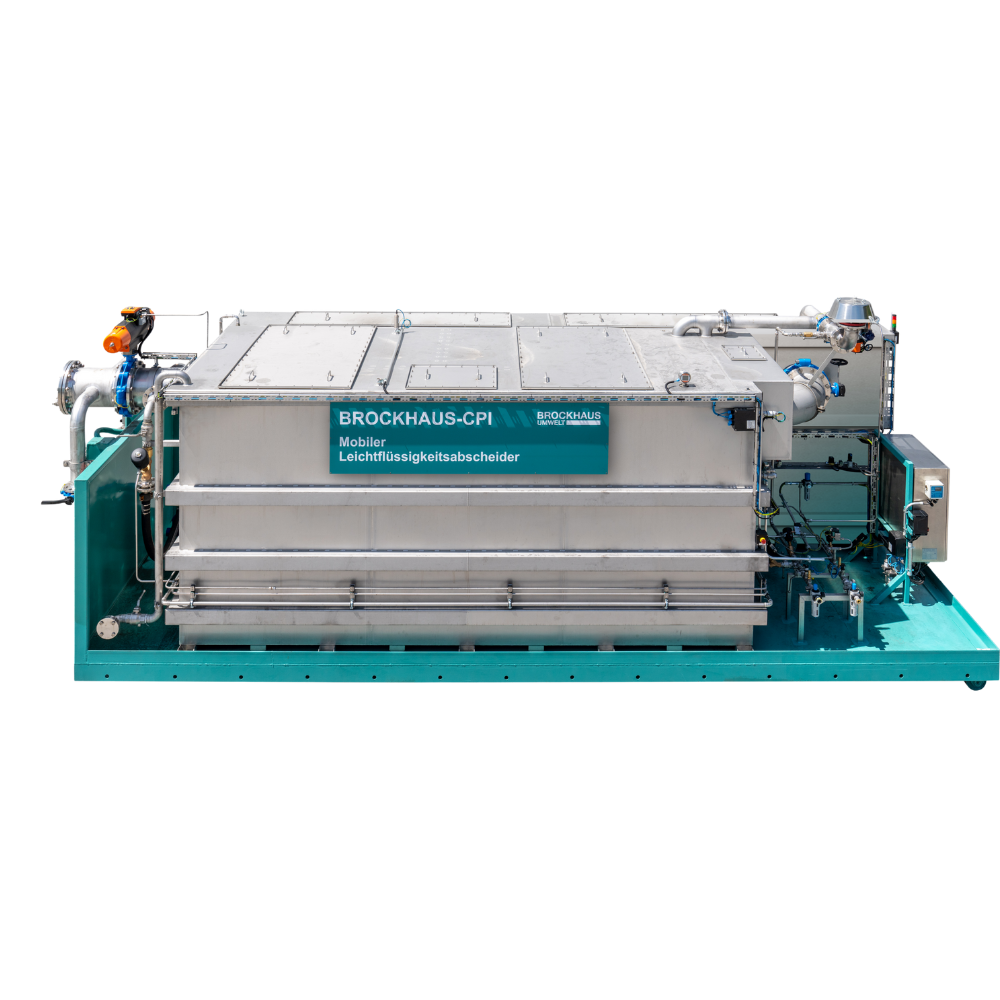

BROCKHAUS CPI
The CPI is a mobile, gas-tight, and emission-free light liquid separator designed for separating oil and wastewater.
It features an inlet and settling chamber, a coalescence section with multiple coalescence stages, as well as an oil and replenishment tank with integrated level monitoring.
The entire system is nitrogen-pressurized and equipped with continuous level measurement in all chambers.
In addition, all operating data are permanently recorded and transmitted, ensuring safe and easy operation of the CPI at all times.
Specification
|
Type: |
Lightweight liquid separator CPI |
|
Separation efficiency: |
99.9% |
|
Design: |
Gas-tight |
|
Operating pressure: |
non-pressurized |
|
Operating temperature: |
min. 5 °C / max. 50 °C |
|
Flow rate: |
max. 180 m³/h |
|
Sensors: |
Temperature, pressure, and level measurement |
|
Oil Chamber: |
1,400 liters |
|
Replenishment tank: |
4,500 liters |
|
Empty weight: |
approx. 2.400 kg |
|
Operating weight: |
approx. 24,000 kg |
|
Dimensions (LxWxH): |
8.1 m x 2.5 m x 3.1 m |
|
Valves: |
TA-Air compliant |
|
Connections: |
Flange connections (DIN EN 1092-1) |
|
Compressed air required: |
5.5 bar |
|
Nitrogen required: |
4.5 bar |
|
Electrical connection required: |
400/690 V /3~/50 Hz |
Optional Extension
As a full-service provider, we customize the CPI for your specific application and equip it with additional components as needed.

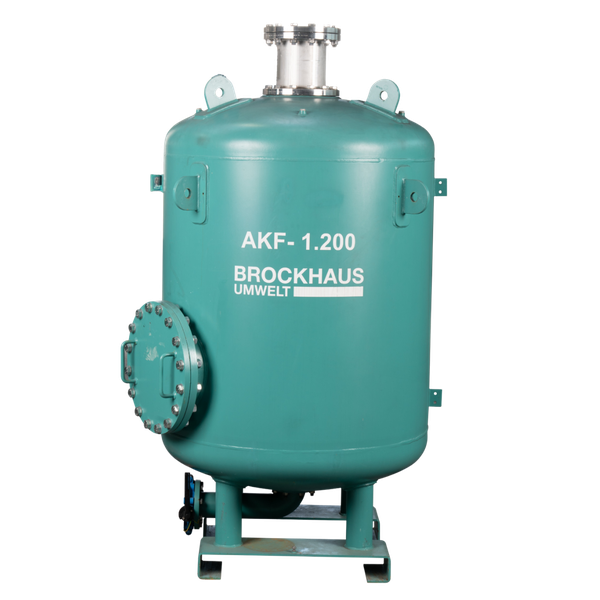

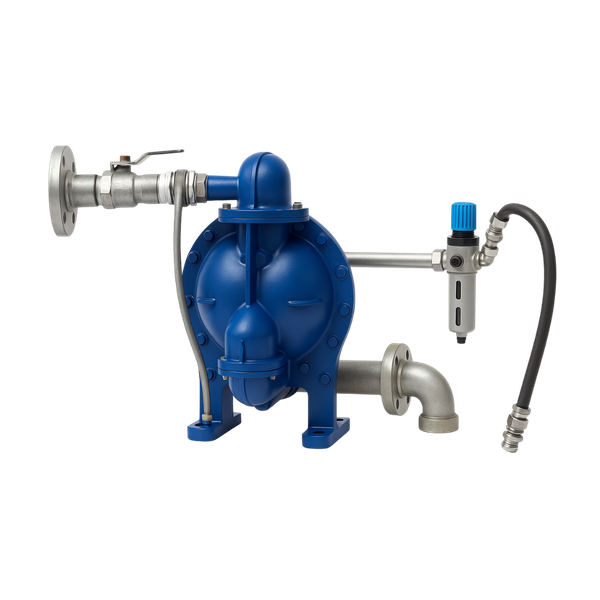

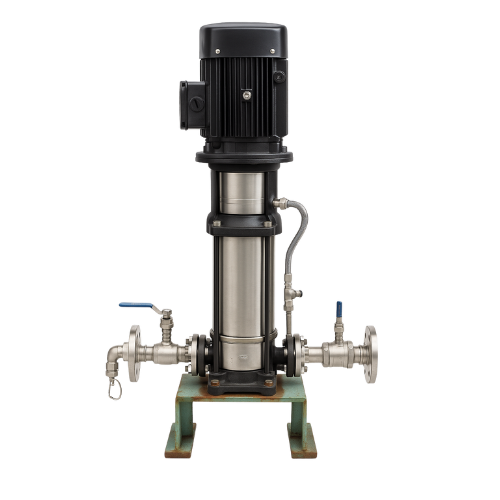

Optionally, the CPI can be fitted with additional components such as an activated carbon air filter, hoses, explosion-proof high-performance pumps, measuring instruments, and an advanced control system — creating a complete, safe, and self-sufficient solution.
