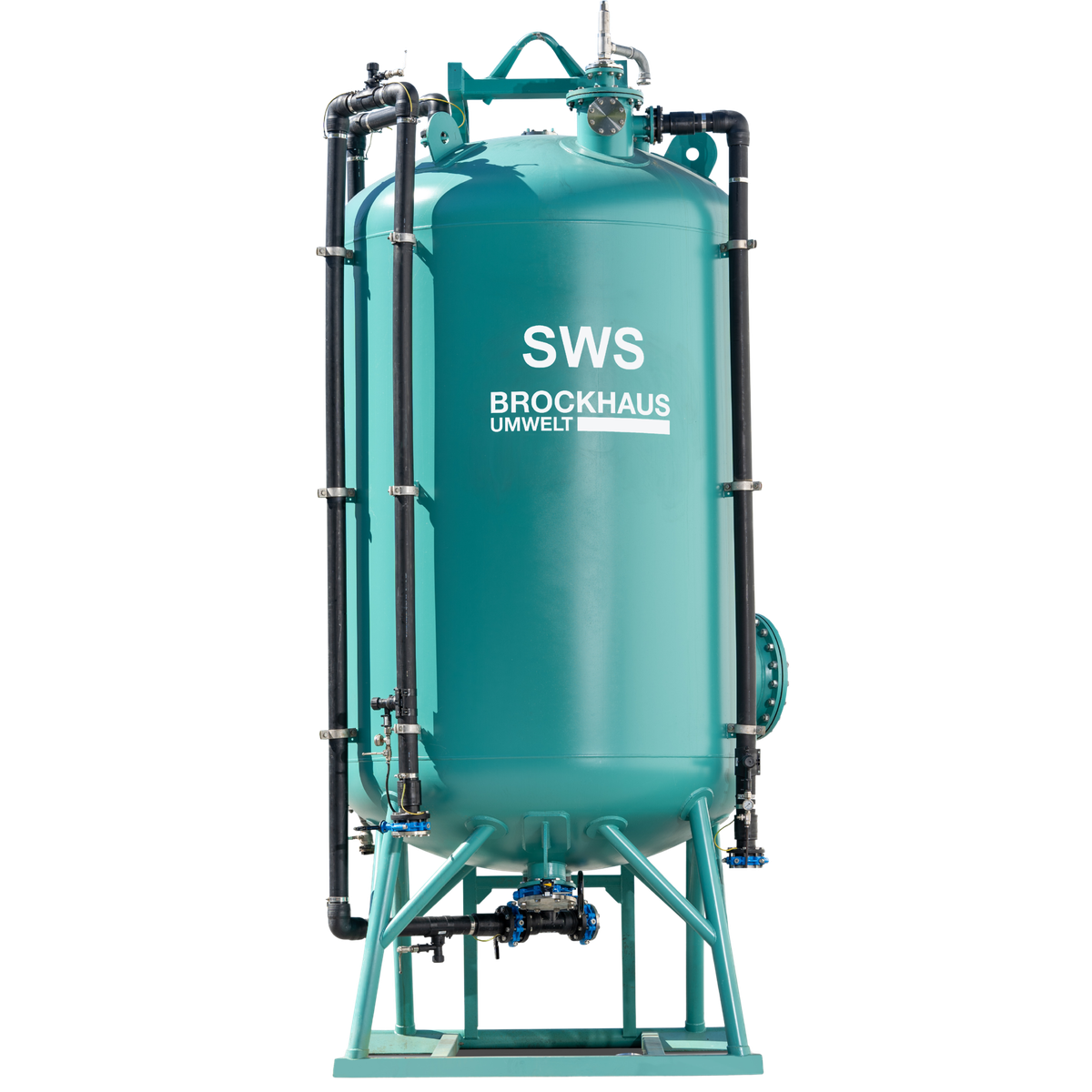

BROCKHAUS WAF-20.000

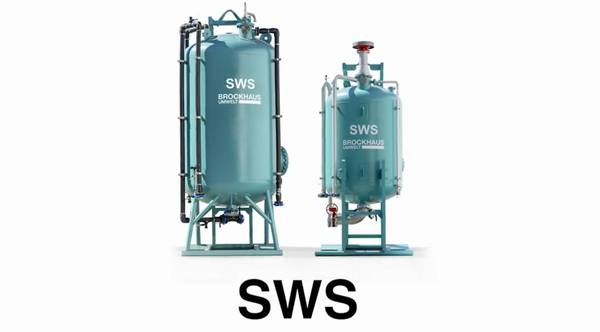

The WAF-20.000 is an activated carbon filter with a quick-change system (SWS) developed for water applications.
By using different types of activated carbon, VOCs, H₂S, NH₃, and Hg can be reliably adsorbed.
The internal, electrically conductive 2K coating provides additional corrosion protection and prevents electrostatic charging, which increases operational safety.
Integrated sampling points allow for easy monitoring of filter performance.
The filter is designed for operating pressures up to 6 bar, covering a wide range of applications.
Specification
|
Typ: |
SWS air activated carbon filter 20.000 |
|
Operating pressure: |
min. -0,5 bar max. 6 bar |
|
Operating temperature: |
min. -10 °C / max. 80 °C |
|
Flow rate: |
max. 40 m³/h |
|
Fluid group: |
1 |
|
Filter volume: |
approx. 20 m³ |
|
Empty weight: |
approx. 4,500 kg |
|
Operating weight: |
approx. 23,000 kg |
|
Dimensions (L×W×H): |
2.7 m × 2.7 m × 6.1 m |
|
Diameter: |
2,48 m |
|
Filter material: |
S235 with electrically conductive 2K internal coating |
|
Piping: |
1.4571 or HDPE |
|
Valves: |
TA-Air compliant |
|
Connections: |
Flange connections (DIN EN 1092-1) |
Optional Extension
As a full-service provider, we can design and configure the WAF-20.000 individually for your specific application and equip it with additional components.
Optionally, the filter can be fitted with extra components such as additional filter units, hoses, condensate separators, safety equipment, measurement technology, and control systems — providing a complete, safe, and autonomous solution.
