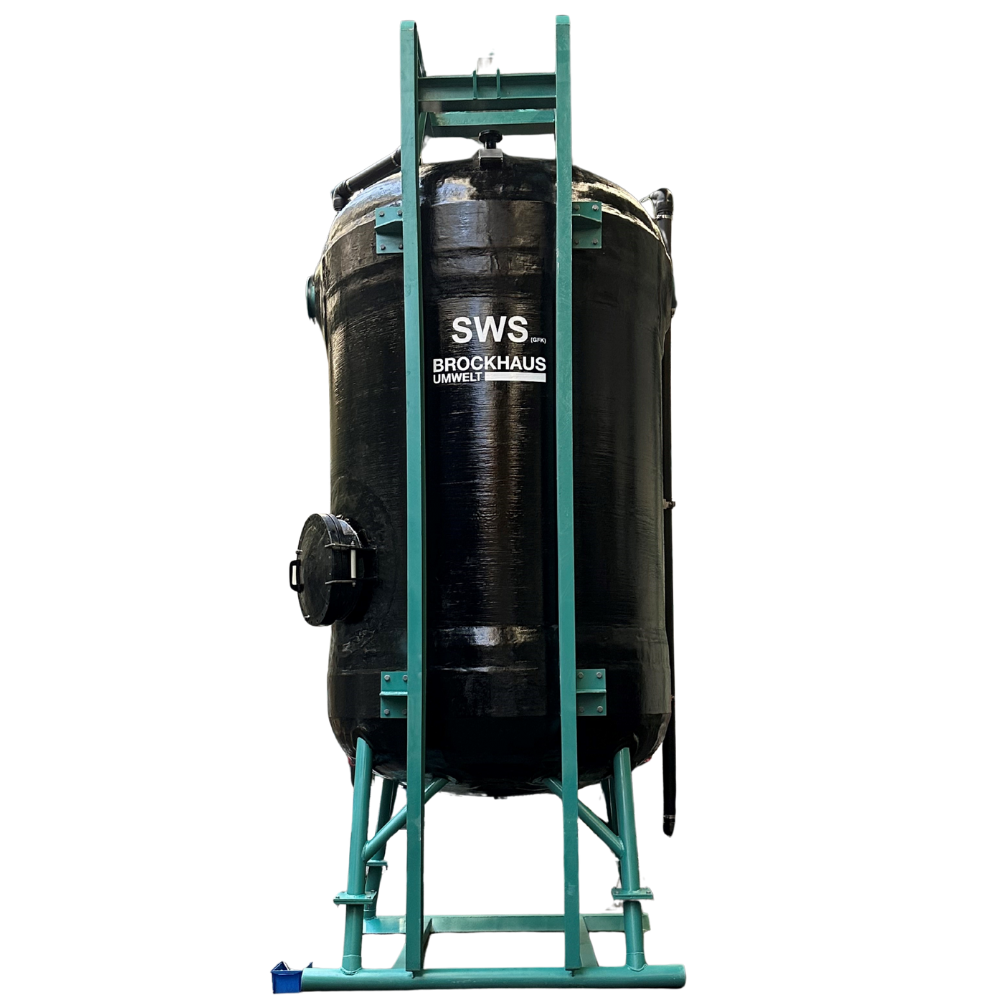

BROCKHAUS WAF-20.000 (GFK)
The WAF-20.000 (GFK) is an activated carbon filter made of glass-fiber reinforced plastic with a quick-change system (SWS), specifically designed for use with aggressive media.
The internal, electrically conductive 3.5 mm thick chemical protection layer provides additional corrosion resistance and prevents electrostatic charging, thereby increasing operational safety.
Integrated sampling points allow for easy monitoring of filter performance.
The filter is designed for operating pressures up to 6 bar, covering a wide range of applications.
Specification
|
Type: |
SWS-GFK Activated Carbon Filter 20,000 |
|
Operating pressure: |
min. -1 bar / max. 6 bar |
|
Operating temperature: |
min. -15 °C / max. 50 °C |
|
Flow rate: |
max. 40 m³/h |
|
Filter volume: |
approx. 20 m³ |
|
Empty weight: |
approx. 4.070 kg |
|
Operating weight: |
approx. 23,000 kg |
|
Dimensions (LxWxH): |
2.4 m x 2.4 m x 6.3 m |
|
Diameter: |
2.39 m |
|
Filter material: |
GFK with electrically |
|
Piping: |
HDPE |
|
Valves: |
TA-Air compliant |
|
Connections: |
Flange connections (DIN EN 1092-1) |
Optional Extension
As a full-service provider, we can tailor the WAF-20.000 (GRP) to your specific application and equip it with additional components.
Optionally, the filter can be fitted with extra components such as additional filter units, hoses, condensate separators, safety equipment, measuring instruments, and control systems — providing a complete, safe, and autonomous solution.
