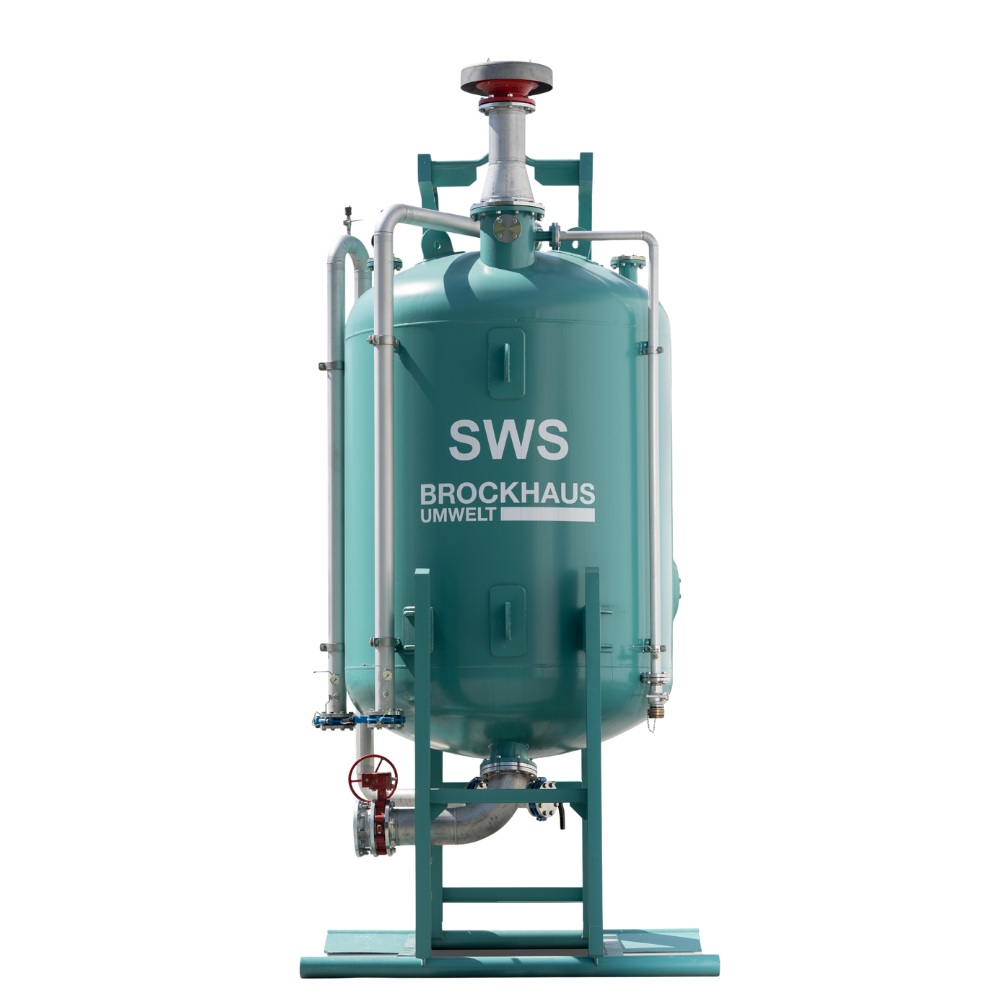

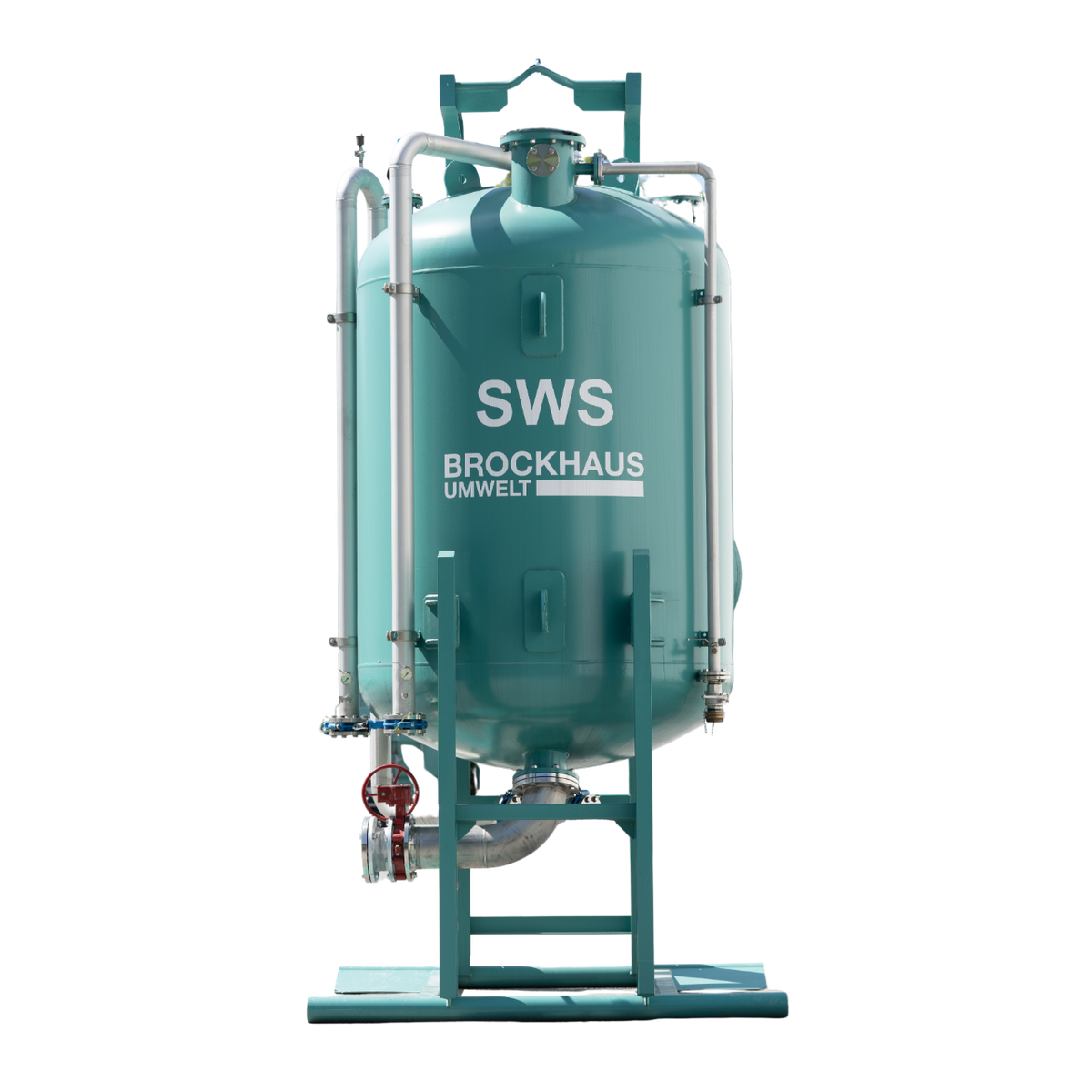

BROCKHAUS WAF-5.000

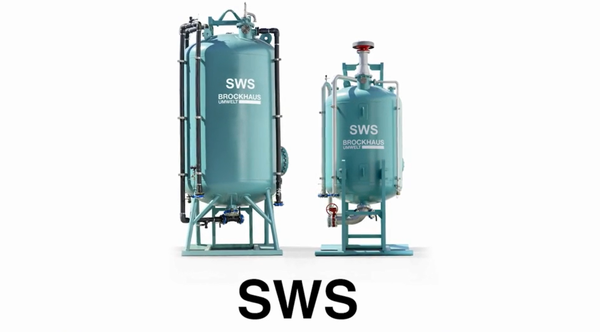

The WAF-5.000 is an activated carbon filter with a quick-change system (SWS) designed for water applications.
By using different types of activated carbon, VOCs, H₂S, NH₃, and Hg can be reliably adsorbed.
The internal, electrically conductive two-component coating provides additional corrosion protection and prevents electrostatic charging, thereby increasing operational safety.
Integrated sampling points allow for easy monitoring of filter performance.
The filter is designed for operating pressures up to 6 bar, covering a wide range of applications.
Specification
|
Type: |
SWS-Air activated carbon filter 5.000 |
|
Operating pressure: |
min. -1 bar / max. 6 bar |
|
Operating temperature: |
min. -10 °C / max. 80 °C |
|
Flow rate: |
5,000 – 6,000 m³/h |
|
Fluid group: |
1 |
|
Filter volume: |
approx. 5 m³ |
|
Empty weight: |
approx. 3.500 kg |
|
Operating weight: |
approximately 12,000 kg |
|
Dimensions (LxWxH): |
2.4 m x 2.4 m x 5.1 m |
|
Diameter: |
2 m |
|
Filter material: |
S235 with electrically conductive 2K internal coating |
|
Piping: |
1.4571 or HDPE |
|
Valves: |
TA-Air-Compliant |
|
Connections: |
Flange connections (DIN EN 1092-1) |
Optional extension
As a full-service provider, we can tailor the WAF-5.000 to your specific application and equip it with additional components.
Optionally, the filter can be fitted with extra components such as additional filter units, hoses, condensate separators, safety equipment, measuring instruments, and control systems — providing a complete, safe, and autonomous solution.
